Single Freighter Canoe Trailer
Single Long Sea Kayak Trailer
Rowing Shell Trailer

also for small boats, dories, sailboats and  skiffs up to 350 lbs

Trailex Logo

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA

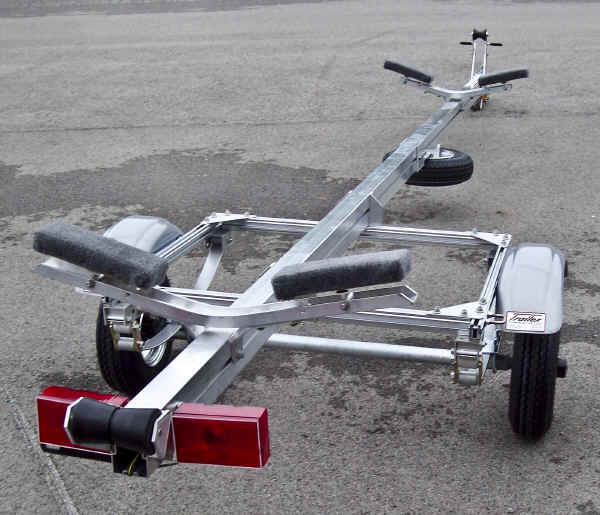

Trailex Model SUT-350-S Trailer

UT-350-LS

All Aluminum, All Bolted Construction, All Adjustable

Model SUT-350-S  will transport a single  Long  Freighter Canoe or  Sea Kayak.  It also will fit sailboats, skiffs and dories.   It uses a single soft leaf spring suspension.   This trailer can be shipped via UPS, and is easily assembled.  Since the SUT-350-S Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight. Another advantage is that the SUT-350-S carries your Canoe or Kayak upright, allowing you to store gear in the boat and since the canoe or kayak is positioned for launching, you may never have to lift your boat again.






Canoe on Car Canoe on SUT-200-S Trailer

Go from This

To This







Trailex SUT-350-S Trailer with Long Sea Kayak
Trailex SUT-350-S Trailer With a 22' Long Sea Kayak
(
Sorry- kayak is not included)



Price

1,112.00

+ FREE SHIPPING
in 48 USA


ORDER THE COMBO PACKAGE

Buy Two items, and get One FREE
 Save $ 50.00

(Order the Spare Tire Carrier  and Bearing Buddies with Bra and Receive the Spare Tire  for FREE, a 50.00 Value)

Ask for the Combo Package and you will receive:
Spare Tire
Spare Tire Carrier
Bearing Buddies with Bras

What is a Bearing Buddy? View Here

COMBO  Package $89.90
(only when ordered with trailer)

RETAIL VALUE OF PACKAGE  IS $139.90





Trailex SUT-200-S Trailer with Sportspal Canoe - Launching by Hand Trailex SUT-200-S Trailer with Sportspal Canoe - Launching by Car
Use As A  Dolly
(
Sportspal Canoe Not Included)
  Use As  A Trailer
(
Sportspal Canoe Not Included)





Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

350 lbs
130 lbs
18'-6"
53 "
16" High
1-7/8"
Flat 4 prong
  • Submersible Taillights

  • Safety Chain

  • Padded Cradles on Adjustable Brackets

  • Adjustable Bow Stop

  • High Impact Plastic Fenders

  • Lift Handle with Vinyl Caps

  • High Speed Demountable Wheels & Tires

  • Adjustable Undercarriage

  • Rear Loading Roller







Optional Extra Equipment


SPGAL Spare Tire    50.00
STC Spare Tire Carrier   50.00
BBY+B Bearing Buddies w/Bra (pair)   39.95
JACK Adjustable Front Parking Jack   99.95
WNC Winch with Strap & Hook 119.95
350-MPK Dual  Kayak Conversion Kit (Two Kayaks) 199.95






Cradle adjusted for kayak Cradles on SUT-350-S will allow bunks to be adjusted inward to accommodate narrow boat hulls, such as kayaks & Rowing Shells.





Trailex Trailer Has Fully Adjustable Cradles     Trailex Trailer Has Fully Adjustable Cradles     Trailex Trailer Has Fully Adjustable Cradles
Semi Vee Hulls   Adjusts to any Hull   Swivels Flat

Trailer Cradles Adjust  to any Point on the Tongue - Bunks Swivel to  Hulls Contour







SUT-350-S Trailer with 18' Canoe
SUT-350-S with 18' Canoe
canoe & cover not included



Trailex SUT-350-S Trailer
The Trailex SUT-350-S Trailer Is Fully Adjustable For Boats, Canoes, Kayaks and Sailboats
(shown with optional Spare Tire, Spare Tire Carrier and Bearing Buddies)







Trailex SUT-350-S Trailer For Sailboats, Canoes, Kayaks and Boats
The Trailex SUT-350-S Trailer Comes With Submersible Taillight System
That Meets All Federal Requirements
(shown with optional Spare Tire, Spare Tire Carrier and Bearing Buddies)





Application Information

The Trailex  Model SUT-350-S will carry up to a 21'-6" long  Canoe,  Kayak, Rowing Shell, Skiff  or Dory* and up to a 20' Sailboat

Longer  than 21'-6" Light  Boats, such as a Rowing Shell can be carried, but rear flags or lights are advised on the end of the boat.  On boats with long overhangs, care should be exercised when going up or down inclines, so that the stern of the boat does not touch the ground.

* most states allow up to a  4' overhang before requiring flags or reflectors

For boats 18' and shorter see the Model SUT-200 Trailer - Click Here

For Wider boats or up to 500 lbs  the Model SUT-500-S18 Trailer - Click Here

Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for UPS Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt












SUT-350-S
Assembly Instructions
Escape Sailboat Trailer Zuma Sailboat Trailer
More
Trailers

Trailex Trailer Brochure
Trailex Trailers
Brochure
